Button Type compression force load cell 0-150kN
Model: FC50
Capacity: 0~150kN
Type: Button type load cell
Load direction: Compression
Rated output: 1.5mV/V
Non-repeatability: 0.1% of R.O.
Excitation: 3~15V
Output: Analog
Features:

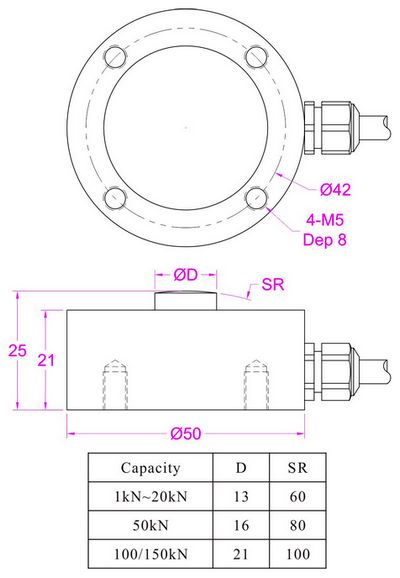

The FC50 compression load cell is a compact and robust force sensor made of stainless steel, utilizing strain gauge technology to deliver accurate compression force measurement. Available in eight rated capacities—1kN, 2kN, 5kN, 10kN, 20kN, 50kN, 100kN, and 150kN—the FC50 round force sensor is designed to meet a wide range of industrial force measurement needs. Its button-type structure and compact dimensions make it ideal for applications where installation space is limited. The sensor features four M5 threaded holes on the bottom for secure and straightforward mounting. Compression sensor FC50 provides standard mV/V output, and for enhanced compatibility with various control systems, analog outputs such as 0–5V, 0–10V, or 4–20mA can be achieved via an external signal conditioner. This makes it suitable for use in automation, structural testing, press-fit force monitoring, and other compression force applications where precision and reliability are essential.
