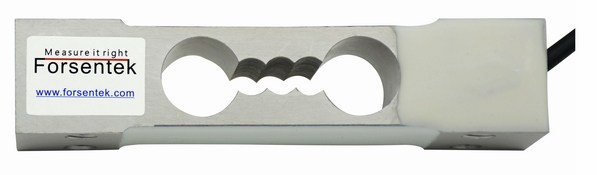

Off center loadcell 3kg 6kg 10kg 20kg 30kg

Model:                        FNG

Capacity:                    3~40kg

Material:                     Aluminum alloy

Type:                          Single point load cell

Rated output:              2.0±10%mV/V

Non-repeatability:      0.015% of R.O.

Excitation:                  3~15V

Other:                         Off center load sensor

Features:

Off center load cells can be used in different sectors as it maintains precision even where the loads are not well centered, this type of weighing sensors are characterized by high accuracy and affordable price. Precision weighing sensor FNG offers 40kg / 30kg / 20kg / 15kg / 10kg / 6kg / 3kg seven rated capacities to choose from, high accuracy with maximum 0.02% non-linearity of the full scale. 1000 ohms high resistance strain gauges are used to reduce the power consumption, it is designed with 2xM6 threaded holes on each end, one end for mounting the sensor, the other end for loading. Stable performance over a wide of temperature is guaranteed through its temperature compensation process. Platform load cell FNG is corner trimmed using 250x350mm platform, which makes it applicable for off-center weight measurement. Typical applications are for example packing&dosing machines, process control, bench scales, warehousing weighing system and other industrial weighing applications.

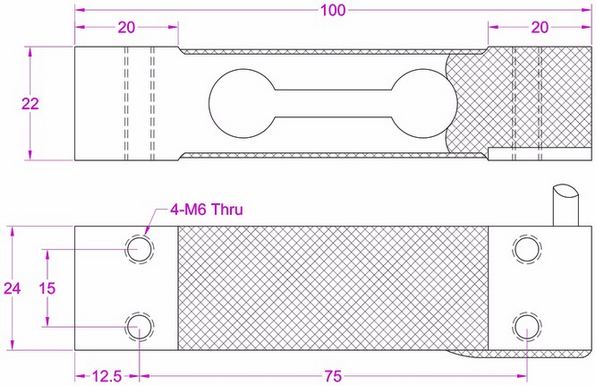

Dimensions:
