Load button load cell|Small round force sensor

Model:                        FCLB

Capacity:                    0~5kN

Type:                          Button type load cell

Load direction:           Compression

Rated output:              1.5mV/V

Non-repeatability:      0.2% of R.O.

Excitation:                  3~12V

Material:                     Stainless steel

Features:

The FCLB small-size button load cell is constructed from stainless steel and utilizes strain gauge technology to provide reliable compression force measurement. It is available in a range of capacities: 50N, 100N, 200N, 500N, 1kN, 2kN, and 5kN. Designed for compact spaces, the sensor features 4×M2.5 threaded holes on the bottom for easy mounting and comes with a 3-meter-long shielded cable for convenient integration. With its robust build and high sensitivity, the FCLB round force sensor is ideal for various industrial and testing applications, including load distribution analysis, injection molding force detection, overload protection, clamping force monitoring, assembly force control, hydraulic system testing, and verification of riveting and crimping forces. Its compact design and ease of installation make it a versatile choice for precise compression force measurement in both laboratory and production environments.

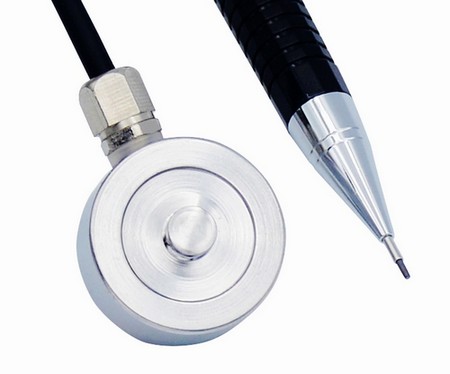

small compression load cell

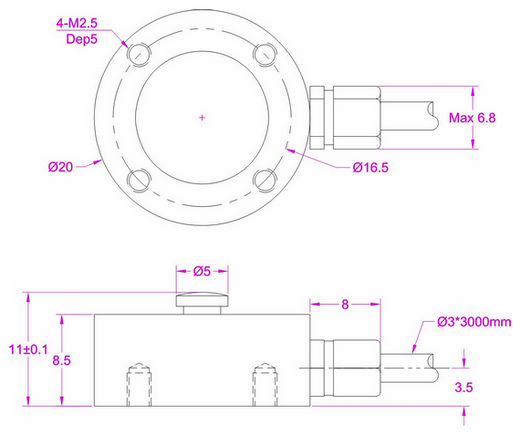

Dimensions:
