Miniature load cell 10kN 20kN Compression sensor

Model:                        FC2D

Capacity:                    10kN/20kN

Type:                          Button load cell

Load direction:           Compression

Rated output:              1.5mV/V

Non-repeatability:      0.5% of R.O.

Excitation:                  3~15V

Other:                         Custom-design service

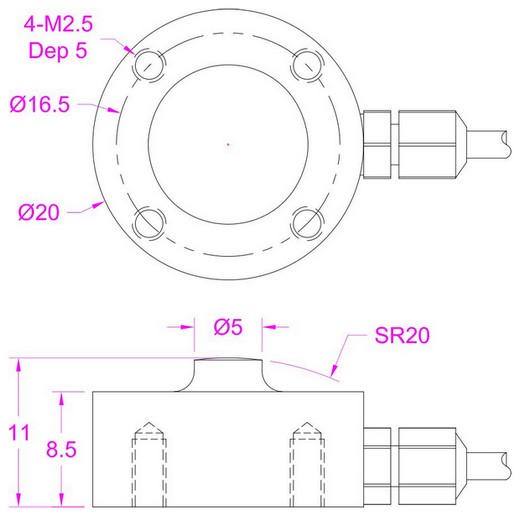

Miniature button type load cell FC2D is made of stainless steel based on strain gauge technology intended for compression force measurement. Micro compression sensor FC2D offers 0-10kN / 0-20kN two rated measuring ranges to choose from. The transducer comes with a 3-meter-long shielded cable, 4xM2.5 threaded holes located on the bottom can be used to mount the sensor on a solid flat surface which should be sturdy enough to undertake the force to be loaded. You may find micro loadcell FC2D applicable for load distribution analysis, mold pressure measurement, force overload detection, fixture clamping force measurement, hydraulic force test and so on.
