Miniature compression load cell 100kg 50kg 20kg

Model:                        FC15A

Capacity:                    5~100kg on request

Type:                          Micro button load cell

Load direction:           Compression

Rated output:              1.5mV/V

Non-repeatability:      0.3% of R.O.

Excitation:                  3~10V

Other:                         Miniature force sensor

Features:

Miniature compression load cell FC15A is made of stainless steel based on metal foil strain gauge technology intended for compression force measurement.Micro force sensor FC15A is available in 5kgf / 10kgf / 20kgf / 30kgf / 50kgf / 100kgf six measuring ranges with mV/V output, 0-5V / 0-10V / 4-20mA output is achievable through external signal conditioner. Compact size with 15mm diameter and 7mm height, you may find small size button loadcell FC15A applicable for force measuring applications with limited installation space.

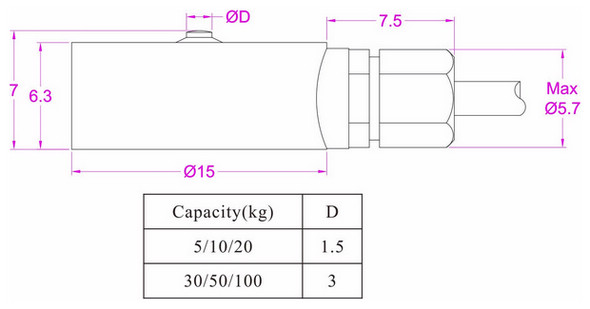

Dimensions:
