Product > Beam load cell

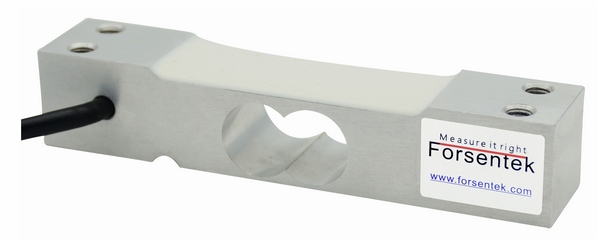

Load transducer|load cell sensor

Model:                        FNJ

Capacity:                    6kg~40kg

Material:                     Aluminum alloy

Load direction:           Compression

Rated output:              2.0±10%mV/V

Non-repeatability:      0.02% of R.O.

Excitation:                  3~15V

Other:                         Custom-design service

Features:

load transducer

--Aluminum contruction

--Strain gauge load cell,high accuracy

--Beam structure,small size,easy to install

--Corner trimmed for 200*200mm platform

--Widely used for counting scales and other weighing scales

--Low cost

Dimensions:
Searching keywords:
Load transducer,load sensor 10kg,load cell 30kg,weight transducer 40kg
